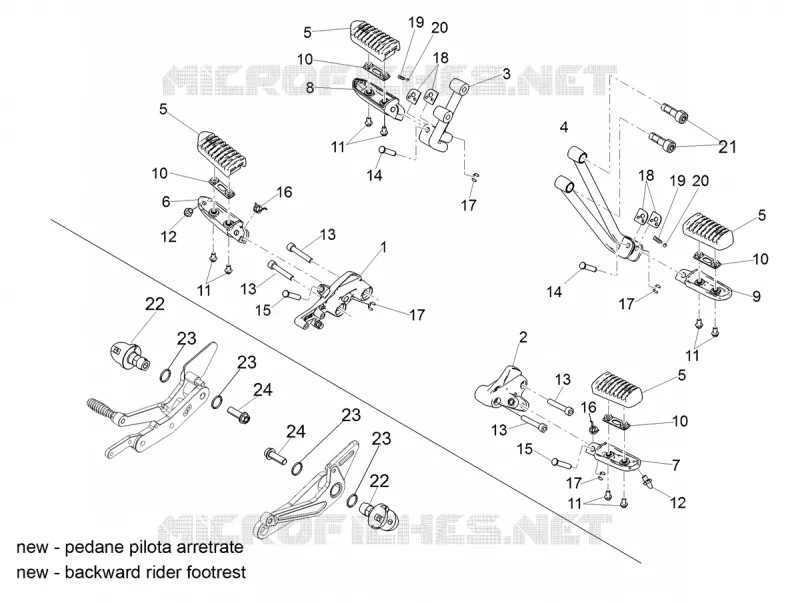

Foot rests
1
2
3
4
5
5
5
5
6
7
8
9
10
10
10
10
11
11
11
11
12
12
13
13
13
13
14
14
15
15
16
16
17
17
17
17
18
18
19
19
20
20
21
22
22
23
23
23
23
24
24
1
RH front footrest bracket
2B002218
Não disponível
2
LH front footrest bracket
2B002219
136,40€ Preço unitário com IVA
3
Right pass. footrest support
2B003077
165,42€ Preço unitário com IVA
4
Left pass. footrest support
2B003076
165,42€ Preço unitário com IVA
5
Footrest rubber
2B002225
12,43€ Preço unitário com IVA
6
RH Foot rests
AP8145034
Não disponível
7
LH Foot rests
AP8145035
Não disponível
8
Rear footrest, RH
GU32442310
Não disponível
9
Rear footrest, LH
GU32442710
Não disponível
10
Plate
GU32441210
12,54€ Preço unitário com IVA
11
Screw w/ flange M6x12
AP8152277
3,74€ Preço unitário com IVA
12
Footrest pin
B063907
Não disponível
13
Hex socket screw
GU98680445
2,83€ Preço unitário com IVA
14
Footrest pin
CM228401
5,03€ Preço unitário com IVA
15
Pin
AP8121567
23,29€ Preço unitário com IVA
16
Footrest return spring
AP8221277
12,89€ Preço unitário com IVA
17
Stop ring
AP8120573
2,53€ Preço unitário com IVA
18
Footrest plate
AP8134451
8,06€ Preço unitário com IVA
19
Coil compress. spring
AP8121133
5,17€ Preço unitário com IVA
20
Ball D6,35
AP8101861
2,18€ Preço unitário com IVA
21
Special cap screw 8x25
2B002171
2,69€ Preço unitário com IVA
22
Rider footrest support
2B004044
89,78€ Preço unitário com IVA
23
O-ring 18x2
AP9100477
6,92€ Preço unitário com IVA
24
screw TEF M10X45
967384
9,80€ Preço unitário com IVA
Os esquemas são fornecidos apenas para referência. Em caso de dúvida, os nossos especialistas estão disponíveis para responder às suas questões. Ao adicionar uma peça ao carrinho, certifique-se de selecionar a quantidade pretendida. O preço unitário apresentado corresponde a uma unidade de cada referência.
