por

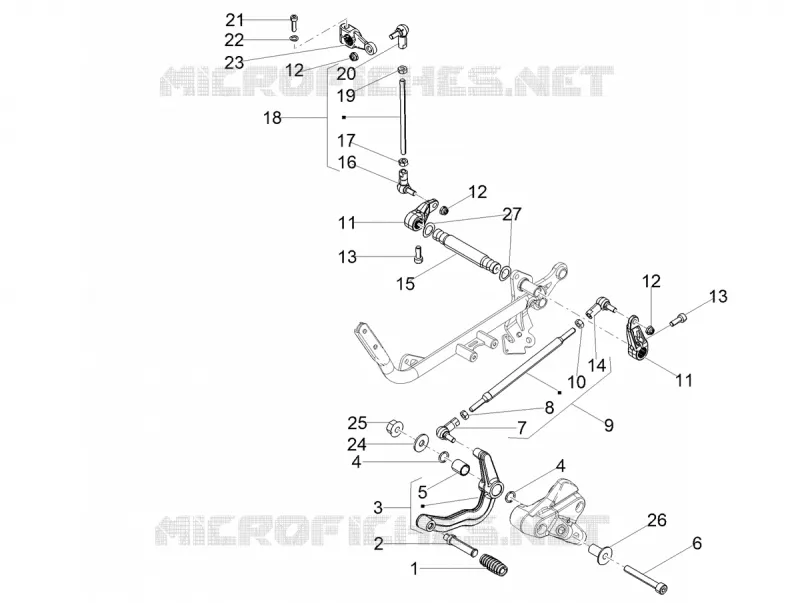

Gear lever
1
2
3
3
4
4
5
6
7
8
9
10
11
11
11
12
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
Lever rubber
AP8120912
5,74€ Preço unitário com IVA
2
Rubber pedal
887908
Não disponível
3
Complete gearchange lever
2B003348
Não disponível
4
O-ring 11,11x1,78
AP8144007
3,22€ Preço unitário com IVA
5
Sintered bushing
895328
8,14€ Preço unitário com IVA
6
Hex socket screw M8x60
GU98680460
7,28€ Preço unitário com IVA
7
Left ball joint M6
898397
20,99€ Preço unitário com IVA
8
Nut
GU92606206
Não disponível
9
Gear control tie rod
2B003606
Não disponível
10
LH thread nut M6
GU31256881
7,24€ Preço unitário com IVA
11
Gear change lever
898283
Não disponível
12
Low self-locking nut M6
AP8150115
Não disponível
13
Hex socket screw
GU98692318
2,83€ Preço unitário com IVA
14
RH ball joint M6
898396
20,99€ Preço unitário com IVA
15
Lever pin
2B001009
25,26€ Preço unitário com IVA
16
Left ball joint M6
AP8110053
18,67€ Preço unitário com IVA
17
Nut
AP8152138
3,74€ Preço unitário com IVA
18
Gear control tie rod
2B001941
27,31€ Preço unitário com IVA
19
Nut M6
AP8150026
2,77€ Preço unitário com IVA
20
RH ball joint M6
AP8210007
19,25€ Preço unitário com IVA
21
screw
GU98632322
2,84€ Preço unitário com IVA
22
Washer 6,4x12
GU03013800
4,26€ Preço unitário com IVA
23
Shift lever
GU20258221
85,25€ Preço unitário com IVA
24
Washer
AP8150018
3,74€ Preço unitário com IVA
25
Nut M8x1,25
967363
3,07€ Preço unitário com IVA
26
Bush
AP8121509
8,89€ Preço unitário com IVA
27
Spring washer
GU95129260
4,60€ Preço unitário com IVA
Os esquemas são fornecidos apenas para referência. Em caso de dúvida, os nossos especialistas estão disponíveis para responder às suas questões. Ao adicionar uma peça ao carrinho, certifique-se de selecionar a quantidade pretendida. O preço unitário apresentado corresponde a uma unidade de cada referência.
